HEATING EQUIPMENT PAGE 3 |
|
|
Pizza Oven - SINGLE DECK |
|
Features
-
2 x ceramic plates - single deck
-
Dual thermostats for accurate control of top and bottom temps
-
Interior light with viewing window
-
Robust construction with high efficiency insulation
|
ORDER CODES POA1120
POA1120 • Pizza Oven Anvil - Single Deck
SPECIFICATIONS - POA 1120
VOLTAGE: 380V - 3 Phase
POWER: 7.2kW
DIMENSIONS: 890 x 430 x 1060mm
WEIGHT: 80kg
MAX TEMPERATURE: 400ºC
CHAMBER DIMENSIONS: 900 x 610 x 140 mm
|
|

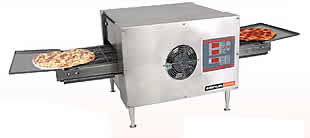

Pizza Oven - DIGITAL CONVEYOR |
|
Features
-
Accurate control of conveyor speed
-
Individual top and bottom temperatures
-
Digital setpoint of speed and temperatures
-
Touch control panel prevents accidental adjustment
-
350mm wide conveyor makes this oven extremely flexible and ideal for
pizzas or sub sandwiches
-
Variable individual heat controls and adjustable conveyor speed allows
the user to bake a range of different products
-
Compact in size and stackable allows for maximum use of working
space
-
Reversible conveyor
|
ORDER CODES POA2001
POA2001 Pizza Oven Anvil - Digital Conveyor
SPECIFICATIONS - POA 2001
VOLTAGE: 230V - 2 PHASE - 50Hz
POWER: 6.7 kW
DIMENSIONS: 1499 x 674 x 436 mm
CONVEYOR WIDTH: 350mm
WEIGHT: 55kg
MAX TEMPERATURE: 300ºC |
|
Proofing Cabinet |
|
Features
-
Complements Anvil convection ovens
-
Double glass doors for space saving and viewing
-
Sturdy top to place oven on
-
Accommodates 9 x 600 x 400mm baking trays
-
Six heat settings for versatile proofing
|
ORDER CODES POA0001
POA0001 Prover Oven Anvil
(trays not included - Sold Separately
SPECIFICATIONS - POA 0001
POWER: 0.75kW
VOLTAGE: 230V
DIMENSIONS: 860 x 591 x 995mm
CHAMBER DIMENSIONS: 650 x 510 x 695mm
RUNNER SPACING: 70mm
WEIGHT: 42kg
|
|
Convection OvenS - Mechanical |
|
Features
-
Stainless Steel exterior and interior
-
Rounded interior corners and removable shelf runners ensure ease
of cleaning
-
The oven is fan assisted and fitted with a custom designed baffle
plate. This ensures that excellent temperature distribution is
achieved providing a reliable baking uniformity and a product
which is perfectly baked on both sides making it superior to static
ovens
-
The Prima Pro unit is provided with a grill element making it ideal
for browning, roasting and grilling
-
A bake timer is also included to automatically switch off after a
preset period
-
Interior light is fitted as a standard feature
|

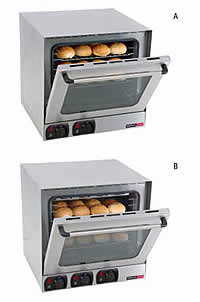

ORDER CODES COA1003 - COA1004
Convection Oven Anvil
COA1003 A Prima
COA1004 B Prima Pro (Grill & Timer)
SPECIFICATIONS - COA 1003
POWER: 2.4kW
VOLTAGE: 230V - 50Hz
DIMENSIONS: 595 x 622 x 590mm
CHAMBER DIMENSIONS: 470 x 330 x 350mm – 2 FANS
RUNNER SPACING: 40 - 70mm
WEIGHT: 41kg
INCLUDES: 4 x CHROME GRIDS - 445 X 320mm
TIMER FUNCTION
SPECIFICATIONS - COA 1004
POWER: 2.4kW
VOLTAGE: 230V - 50Hz
DIMENSIONS: 595 x 622 x 590mm
CHAMBER DIMENSIONS: 470 x 330 x 350mm – 2 FANS
RUNNER SPACING: 40 - 70mm
WEIGHT: 41kg
INCLUDES: 4 x CHROME GRIDS - 445 X 320mm
GRILL FUNCTION AND TIMER
|
|
Grande Forni Convection Oven with
Manual Humdification - Mechanical |
|
Features
-
Steam injection for manual humidity control which allows for
browning of pastry and bread products
-
Industrial duty fans with reversing gear
-
Can accommodate 600 x 400mm baking trays and GN1/1 pans
-
Includes 2 x chrome grids
|
ORDER CODES COA1005 - COR0005
Convection Oven Anvil
COA1005 Grande Forni - Mechanical
COR0005 Grande Forni - Stand Only
SPECIFICATIONS - COA 1005
POWER: 5.6kW
VOLTAGE: 230V – 2 PHASE - 50Hz
DIMENSIONS: 835 x 759 x 590mm
CHAMBER DIMENSIONS: 704 x 494 x 352mm
RUNNER SPACING: 75mm
WEIGHT: 70kg
|
|

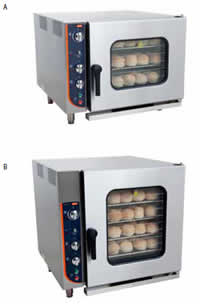

COMBI STEAM OVENS - MECHANICAL |
|
Features
-
Heavy duty electric convection oven
-
Powerful circulating fan
-
Semi automatic steam function
-
Full Stainless Steel construction
-
3 Wall heat distribution
-
6 Pan oven holds 6 full sized gastronorm pans (65mm deep)
-
10 Pan oven holds 10 full sized gastronorm pans (65mm deep)
-
Thermostatically controlled with manual reset safety thermostat
-
Push button operation
-
Water solenoid valve for humidity injection
-
Removable grease trap in front of fan for easy cleaning
-
Full glass viewing door
-
Door handle stays cool to the touch
-
Fan will automatically shut down when the door opens
-
Includes 3 x chrome grids and bottom drip tray
-
Bottom outlet for draining
|
ORDER CODES COA1006 - COA1010
COA1006 Combi Steam Oven Anvil - 6 Pan
COA1010 Combi Steam Oven Anvil - 10 Pan
SPECIFICATIONS - COA 1006
POWER: 12kW
VOLTAGE: 380V – 3 PHASE - 50Hz (Neutral and Earth)
DIMENSIONS: 868 x 968 x 740mm
CHAMBER DIMENSIONS: 475 x 545 x 465mm
RUNNER SPACING: 70mm
WEIGHT: 144kg
SPECIFICATIONS - COA 1010
POWER: 18kW
VOLTAGE: 380V – 3 PHASE - 50Hz (Neutral and Earth)
DIMENSIONS: 868 x 968 x 920mm
CHAMBER DIMENSIONS: 655 x 545 x 465mm
RUNNER SPACING: 70mm
WEIGHT: 160kg
|
|
COMBI STEAM Oven - Stands |
|
Features
-
Flat pack construction
-
Easy to assemble, instruction and tool supplied
-
Removable chrome plated shelf runners for easy cleaning
-
Provision for 8 Baking trays or full size 1/1GN pans
SPECIFICATIONS - COR0005 - STAND
DIMENSIONS: 840 x 710 x 900mm
SPECIFICATIONS - C0A1011
DIMENSIONS: 860 x 750 x 725mm
SUITABLE FOR: COA1006 AND COA1010
|
ORDER CODES COR0005 - COA1011
COR0005 A Convection Oven Grande Forni Stand Only
COA1011 B Combi Steam Oven Anvil - Stand
|
|
Convection Oven - Trays |
|
Features
Suitable for the Prima and Prima Pro
|
ORDER CODES COA2004 - COA2003
COA2004 A Convection Oven Anvil - Solid Tray Prima
COA0010 B Baking Tray - Perforated - 435 x 315 x 10mm
COA2003 C Prima - Pro Oven Anvil - Shelf
|
|
COMBI STEAM/CONVECTION OVEN - Trays |
|
Features
Suitable for the Grande Forni Ovens and Combi Steam Ovens (6 & 10 pan)
|
ORDER CODES COR3001 - BTA0011
COR3001 Chrome Grid Only - 600 x 400mm
COR3003 Baking Tray Perforated - 600 x 400 x 10mm
BTA0011 Baking Tray Aluminium - 600 x 400 x 20mm
|
|

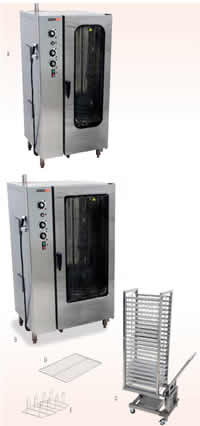

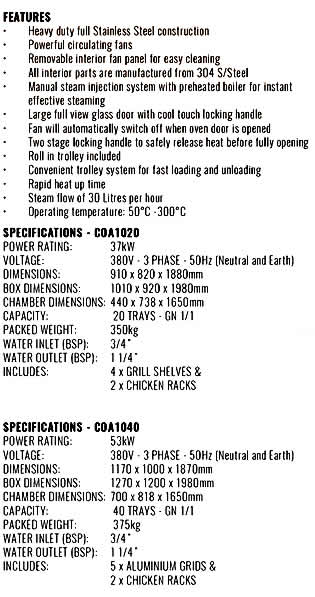

COMBI STEAM OVEN (20 & 40 PAN) - MECHANICAL |
|
|
ORDER CODES COA1020 - COR1020
Anvil
COA1020 A Convection Oven (Combo) 20 pan
COA1040 B Convection Oven (Combo) 40 pan
ACCESSORIES FOR CONVECTION OVEN 20 PAN
COT1020 C Convection Oven Roll in trolley with racks
COS1020 D Convection Oven Grill Shelf for COA1020
COR1020 E Convection Oven Chicken Rack
ACCESSORIES FOR CONVECTION OVEN 40 PAN
COA4020 C 40 Pan Roll in Trolley only
COS1020 D Convection Oven Grill Shelf for COA1020
COR1020 E Convection Oven Chicken Rack for COA1020
|
|

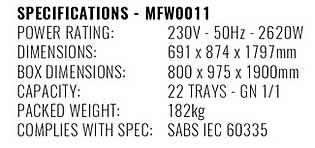

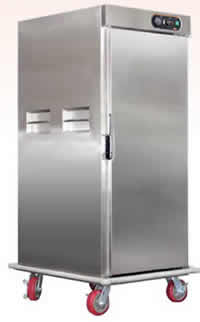

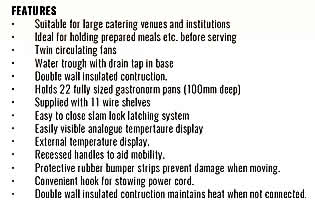

MOBILE FOOD WARMIMG CABINET |
|
|
ORDER CODES MFW0011
MFW0011 Anvil Mobile Food Warming Cabinet
|
|
GAS STOVES WITH ELECTRIC OVEN |
|
Features
-
Robust Stainless Steel construction with heavy duty door and
hinges
-
Easily removable cast iron grates
-
Powerful stove top burners are easily removable for cleaning
-
Removable drip tray beneath stove top to retain spills
-
Thermostatically controlled electric oven takes full gastronorm
pans
-
Powerful oven circulating fan with automatic reversing cycle to
promote even baking
-
‘Cool to touch’ die cast control knobs
-
Suitable for LP or natural gas (requires conversion by a licenced
technican)
-
Fitted with chrome plated steel wire shelf
-
LPG Safety Association approved
-
Useful side storage cupboard on COA4006 and COA5004
SPECIFICATIONS - COA 4004
Voltage : 380V - 3 PHASE - 50Hz
(Neutral and Earth)
Oven Power: 4,5kW
BTU Burners: 104 000 BTU
Dimensions : 700 x 790 x 900mm
CAVITY DIMENSIONS: 560 x 500 x 285mm
Weight : 184kg
REGULATOR: NO
|
ORDER CODES COA4004 - COA5004
Gas Stove with Electric Oven - Anvil
COA4004 A 4 Burner
COA4006 B 6 Burner
COA5004 C Combi/Flat Top - 4 Burner
Note: Heavy duty gas products to be connected by approved gas
installer
SPECIFICATIONS - COA 4006
Voltage : 380V - 3 PHASE - 50Hz
(Neutral and Earth)
Oven Power: 4,5kW
BTU Burners: 156 000 BTU
Dimensions : 1050 x 790 x 900mm
cavity dimensions : 560 x 500 x 285mm
Weight : 238kg
REGULATOR: NO
SPECIFICATIONS - COA 5004
Voltage : 380V - 3 PHASE - 50Hz
(Neutral and Earth)
Oven Power: 4,5kW
BTU Burners: 104 000 BTU
BTU GRILLER: 15 400 BTU
Dimensions : 1050 x 790 x 990mm
cavity dimensions : 560 x 500 x 285mm
Weight : 260kg
REGULATOR: NO
|
|
GAS STOVES WITH GAS OVEN |
|
Features
-
Robust Stainless Steel construction with heavy duty door and hinges
-
Easily removable cast iron grates
-
Powerful stove top burners are easily removable for cleaning
-
Removable drip tray beneath stove top to retain spills
-
Thermostatically controlled gas oven takes full gastronorm pans
-
‘Cool to touch’ die cast control knobs
-
Suitable for LP or natural gas (requires conversion by a licenced
technican)
-
Fitted with chrome plated steel wire shelf
-
LPG Safety Association approved
Useful side storage cupboard on COA3006 and COA6004
SPECIFICATIONS - COA 3004
OUTPUT: 119 700 BTU
GAS: LPG
DIMENSIONS: 700 x 750 x 900mm
CAVITY DIMENSIONS: 560 x 630 x 285mm
WEIGHT: 171kg
REGULATOR: NO
|
ORDER CODES COA3004 - COA6004
Anvil Gas Stoves with Gas Ovens
COA3004 A - 4 Burner
COA3006 B - 6 Burner
COA6004 C - 4 Burner Combi/Flat Top
SPECIFICATIONS - COA 3006
OUTPUT: 171 700 BTU
GAS: LPG
DIMENSIONS: 1050 x 750 x 900mm
CAVITY DIMENSIONS: 560 x 630 x 285mm
WEIGHT: 230kg
REGULATOR: NO
SPECIFICATIONS - COA 6004
Output: 135 100 BTU
GAS: LPG
Dimensions : 1050 x 790 x 990mm
CAVITY DIMENSIONS: 560 x 630 x 285mm
WEIGHT: 260kg
REGULATOR: NO
|
|

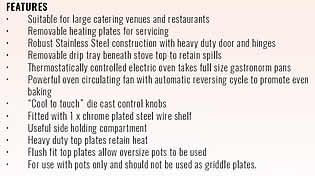

ELECTRIC SOLID TOP STOVE WITH ELECTRIC OVEN |
|
|
ORDER CODES COA4003
COA4003 Anvil 3 plate stove with oven - Electric
|
|

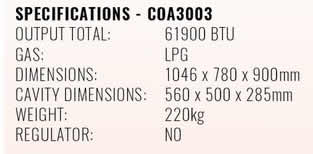

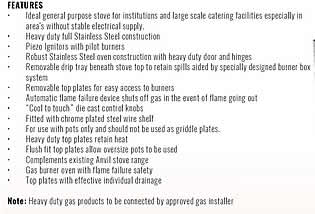

GAS SOLID TOP STOVE WITH GAS OVEN |
|
|
ORDER CODES COA3003
COA3003 Anvil 3 plate stove with oven - Gas
|
|
DECK OVEN - 2 trays per deck |
|
Features
-
Front face Stainless Steel
-
Side, top and rear panels painted mild steel
-
Top and bottom elements are independently controlled
SPECIFICATIONS - DOA 3001
CAPACITY: 4 STANDARD SIZE PIZZAS 300mm
VOLTAGE: 230V - (can be wired as 1 or 3 PHASE
by a certified electrician)
POWER: 6.5kW
DIMENSIONS: 1210 x 895 x 525mm
CHAMBER DIMENSIONS: 870 x 660 x 200mm
WEIGHT: 90kg
INCLUDES: 2 BAKING TRAYS - 600 x 400mm
SPECIFICATIONS - DOA 3002
CAPACITY: 8 STANDARD SIZE PIZZAS 300mm
VOLTAGE: 380V - 3 PHASE - 50Hz
(Neutral and Earth)
POWER: 13kW
DIMENSIONS: 1210 x 895 x 1230mm
CHAMBER DIMENSIONS: 870 x 660 x 200mm
WEIGHT: 170kg
INCLUDES: 4 BAKING TRAYS - 600 x 400mm
|
ORDER CODES DOA3001 - DOS0001
Deck Oven Anvil :
DOA3001 A - 2 Tray - Single Deck
DOA3002 B - 4 Tray - Double Deck
DOA3003 - 6 Tray - Triple Deck
DOA0011 - Ceramic Plate - 600 x 400mm
DOS0001 - Single - Stand Only - M/Steel
SPECIFICATIONS - DOA 3003
CAPACITY: 12 STANDARD SIZE PIZZAS 300mm
VOLTAGE: 380V - 3 PHASE - 50Hz
(Neutral and Earth)
POWER: 19.5kW
DIMENSIONS: 1210 x 895 x 1935mm
CHAMBER DIMENSIONS: 870 x 660 x 200mm
WEIGHT: 250kg
INCLUDES: 6 BAKING TRAYS - 600 x 400mm
|
|
DECK OVEN - 3 TRAYS PER DECK |
|
Features
-
Robust construction
-
Front face Stainless Steel
-
Side, top and rear panels painted mild steel
-
120 min mechanical timer
-
Max temperature 300ºC
-
Glass viewing window
-
Top and bottom elements are independently controlled
-
Interior light
SPECIFICATIONS - DOA 4001
CAPACITY: 6 STANDARD SIZE PIZZAS 300mm
VOLTAGE: 380V - 3 PHASE - 50Hz (Neutral and Earth)
POWER: 9kW
DIMENSIONS: 1720 x 895 x 525mm
CHAMBER DIMENSIONS: 1480 x 660 x 200mm
WEIGHT: 120kg
INCLUDES: 3 BAKING TRAYS - 600 x 400mm
SPECIFICATIONS - DOA 4002
CAPACITY: 12 STANDARD SIZE PIZZAS 300mm
VOLTAGE: 380V - 3 PHASE - 50Hz (Neutral and Earth)
POWER: 19.5kW
DIMENSIONS: 1720 x 895 x 1230mm
CHAMBER DIMENSIONS: 1480 x 660 x 200mm
WEIGHT: 220kg
INCLUDES: 6 BAKING TRAYS - 600 x 400mm
|
ORDER CODES DOA4001 - DOA4003
Deck Oven Anvil - 3 trays per deck
DOA4001 - 3 Tray- Single Deck
DOA4002 - 6 Tray - Double Deck
DOA4003 - 9 Tray - Triple Deck
SPECIFICATIONS - DOA 4003
CAPACITY: 18 STANDARD SIZE PIZZAS 300mm
VOLTAGE: 380V - 3 PHASE - 50Hz (Neutral and Earth)
POWER: 29.25kW
DIMENSIONS: 1720 x 895 x 1935mm
CHAMBER DIMENSIONS: 1480 x 660 x 200mm
WEIGHT: 325kg
INCLUDES: 9 BAKING TRAYS - 600 x 400mm |
|
GAS DECK OVEN |
|
Features
- Robust construction with Stainless Steel facia panel and door
- Unique burner design for even temperature distribution
- Top and bottom burners thermostatically controlled
|
ORDER CODES DOA5001
DOA5001 Deck Oven Anvil - Gas - 2 Tray - Single
Note: Heavy duty gas products to be connected by approved gas installer
SPECIFICATIONS - DOA 5001
CAPACITY: 4 STANDARD SIZE PIZZA - 300mm
GAS: L.P.G
OUTPUT: 36000 BTU
(18000BTU for both upper & bottom burner)
VOLTAGE: 230V
POWER: 200Watt
DIMENSIONS: 1340 x 900 x 670mm
CHAMBER DIMENSIONS: 860 x 640 x 200mm
WEIGHT: 95kg
INCLUDES: 2 BAKING TRAYS - 600 x 400mm
REGULATOR: NO
|
|
TILTING PAN |
TILTING PAN
|
Features
- Ideal for use in restaurants, canteens, institutions, etc.
- Smooth and robust tilting function
- Ideal for stews, and many forms of bulk food preparation
- Easy to clean Stainless Steel pan
- Total power output of 12kW
- Rapidly heats up to operating temperature
- Water inlet control on front panel
- Thermostatically controlled
- Automatic safety cut off in the event of overheating
- Micro switch cuts out elements when pan is tilted
|
ORDER CODES TPA0080
TPA0080 Tilting Pan Anvil - 80Lt
SPECIFICATIONS - TPA 0080
POWER: 12kW
VOLTAGE: 380V – 3 PHASE (Neutral and Earth)
DIMENSIONS: 800 x 900 x 900mm
CAPACITY: 80Lt
WEIGHT: 171kg
PACKAGED WEIGHT: 247kg |
|
GAS SALAMANDER 75 LT |
|
Features
-
Full Stainless Steel construction
-
Brackets provided to secure unit to wall
-
Top surface with wire grid to allow for plate warming
-
Adjustable levelling feet
-
Provided with removable back cover so that unit can be
used as pass through hatch
-
High performance radiant ceramic burner
-
Controls with flame failure safety
-
Adjustable shelf with 3 positions, fitted with removable
handles to ensure user comfort
-
Unit provided with LPG regulator and hose
|
ORDER CODES SAG0002
SAG0002 Salamander Anvil - Gas - 75Lt
Note: Heavy duty gas products to be connected by approved gas installer
SPECIFICATIONS - Sag0002
GAS: LPG
OUTPUT: 18 000 BTU
DIMENSIONS: 897 x 493 x 510mm
PACKED WEIGHT: 35kg
REGULATOR: YES |
|
Please Note
The products may differ slightly from the pictures shown in this buyers guide. Outputs and capacities given are generally the maximum possible, and these figures do vary according to circumstances. They are based on measurements supplied by the manufacturer, or recorded here. Every effort has been made to include as much needed information as possible, and to present it in an easy-to-read, unambiguous, and consistent manner Prices are subject to change, or may qualify for a discount and are an indication only . Please send us a quote application to see the best prices on offer. |
|
|
