HEATING EQUIPMENT PAGE 2 |
|
FLAT TOP GRILLS - GAS |
|
Features
-
New improved
-
More powerful
-
Front mounted easy access drip tray
-
Anvil gas griddles are ideal for grilling steaks, chops, burgers, mixed
grill, fish, pancakes, eggs, sausages, tomatoes etc. Gas griddles are also
ideal for use outdoors, and in areas where electricity is unavailable.
-
The models with ribbed top surfaces are very effective in providing the
ribbed appearance on the product being grilled. Easy to connect - 1m
flexible hose and regulator supplied.
-
Ignition mechanism for easy igniting. The 750mm appliances have two
burners with independent controls. The units have a flame failure device
which shuts down the gas supply within 60 seconds of the flame going
out for any reason. A drip tray is provided.
-
The griller has adjustable
levelling feet to enable the slope of the griller plate to be set towards
the fat drain tray.
-
The regulator supplied works off low pressure (2.8Kpa) liquefied
petroleum gas, and is suitable for large cylinders (from 9kg to 48kg).
To use a smaller portable cylinder, a coupling connector and a suitable
regulator must be purchased. Gas cylinder not supplied with the
griddles.
-
The units are gas safety approved by the LPG Safety Association of SA.
SPECIFICATIONS - FTA2400
SURFACE: FLAT TOP
GAS: LPG
OUTPUT: 12500 BTU
DIMENSIONS: 400 x 525 x 275mm
GRILL AREA: 400 x 400mm
WEIGHT: 18kg
REGULATOR: YES
|
ORDER CODES FTA2400 - FTA1900
FTA2400 A Flat Top Grill Anvil - 400mm (Gas)
FTA6600 B Flat Top Grill Anvil Flat- 600mm (Gas)
FTA9600 B Flat Top Grill Anvil - Rib - 600mm (Gas)
FTA1900 Flat Top Grill Anvil - Flat - 900mm (Gas)
FTA0750 / FTA1750 Surface flat or Half Flat/ Half Ribbed -
Gas: LPG
SPECIFICATIONS - FTA0750 / FTA1750
SURFACE: FLAT or HALF FLAT / HALF RIBBED
GAS: LPG
OUTPUT: 25000 BTU
DIMENSIONS: 787 x 446 x 244mm
GRILL AREA: 750 x 400mm
WEIGHT: 30kg
REGULATO
Note: Heavy duty gas products to be connected by approved gas
installer
|
|

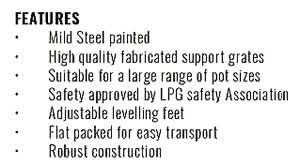

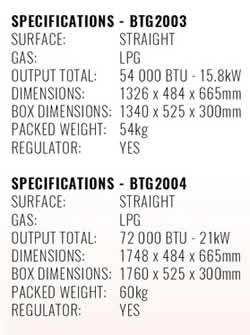

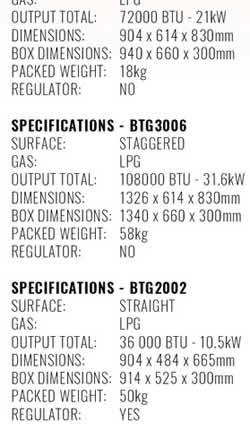

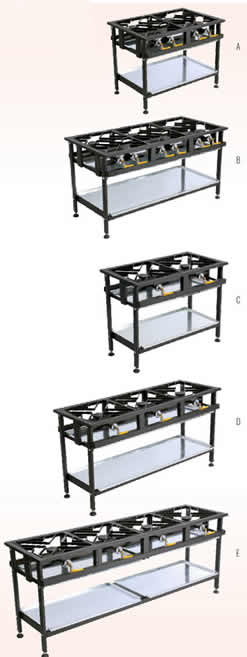

BOILING TABLES - STRAIGHT AND STAGGERED |
|
|
ORDER CODES BTG3004 - BTG2004
Commercial Boiling Tables - Gas
BTG3004 A Boiling Table - 4 Burner Staggered
BTG3006 B Boiling Table - 6 Burner Staggered
BTG2002 C Boiling Table - 2 Burner Straight
BTG2003 D Boiling Table - 3 Burner Straight
BTG2004 E Boiling Table - 4 Burner Straight
|
|
FREE STANDING GAS GRILLERS |
|
Features
-
New improved higher performance
-
Powerful efficient burners
-
Quality gas valves
-
Stainless Steel splash guard
-
Robust modular construction
-
Can be used as table top unit
-
Flat grill plates available as an optional extra on 6 & 10 radiant units
only
-
Drip tray included
-
Piezo ignitor for safe and easy ignition
-
Automatic flame failure device shuts off gas in the event of flame
going out
-
Products are safety approved by the LPG Safety Association of SA
-
Supplied flat packed
-
Extended front bullnose
-
Stainless Steel deflectors
-
28000BTU per burner
SPECIFICATIONS - GGA3004
SURFACE: RIBBED GRATES
GAS: LPG
OUTPUT: 56000 BTU
DIMENSIONS: 521 x 640 x 905mm
GRILL AREA: 450 x 470mm
WEIGHT: 60kg
REGULATOR: YES
SPECIFICATIONS - GGA3006
SURFACE: RIBBED GRATES
GAS: LPG
OUTPUT: 84000 BTU
DIMENSIONS: 807 x 690 x 905mm
GRILL AREA: 750 x 470mm
WEIGHT: 81kg
REGULATOR: NO
|
ORDER CODES GGA3004 - GGA2010
GGA3004 A Gas Griller Anvil - 4 Burner Radiant
GGA3006 B Gas Griller Anvil - 6 Burner Radiant
GGA3010 C Gas Griller Anvil - 10 Burner Radiant
GGA2006Gas Griller Anvil - Grill Plate For 6 Burner Radiant - Third Solid (New)
GGA2010 Gas Griller Anvil - Grill Plate For 10 Burner Radiant - Third Solid (New)
Note: Heavy duty gas products to be connected by approved gas
installer
SPECIFICATIONS - GGA3010
SURFACE: RIBBED GRATES
GAS: LPG
OUTPUT: 140000 BTU
DIMENSIONS: 1307 x 640 x 905mm
GRILL AREA: 1250 x 470mm
WEIGHT: 138kg
REGULATOR: NO |
|
TOASTER FLAT PLATE |
|
Features
-
Adjustable top plate for a variety of food thickness
-
Drip cup to catch excess fat
-
Heat resistant handle
-
Robust construction
Features: Non Stick Teflon Toaster Cover
-
Maximum operating temperature 240°C
-
Dishwasher and microwave safe
SPECIFICATIONS - TSA 1009
POWER: 2.15kW
VOLTAGE: 230V
COOKING SURFACE: 330 x 355mm
DIMENSIONS: 355 x 466 x 327mm
WEIGHT: 14kg
|
ORDER CODES TSA1009 - TCT0001
TSA1009 Toaster Anvil - 9 Slice - Flat Plate
TCT0001 Teflon Cover For 9 Slice Toasters
|
|
Toaster Flat Plate - Non-stick |
|
Features
-
Non stick surface. Makes cleaning a pleasure
-
Adjustable top plate for a variety of food thicknesses
-
Drip cup to catch excess fat
SPECIFICATIONS - TSA 2009
POWER: 2.15kW
VOLTAGE: 230V
COOKING SURFACE: 330 x 355mm
DIMENSIONS: 355 x 466 x 327mm
WEIGHT: 14kg
|
ORDER CODES TSA2009
TSA2009 Toaster Anvil - 9 Slice - Flat (Non Stick Plates)
|
|
Toaster panini - Ribbed |
|
Features
-
For Italian and English sandwiches
-
Ribbed top and bottom plates
-
Adjustable top plate for a variety of food thicknesses
-
Drip cup to catch excess fat
SPECIFICATIONS - TSA 9009
POWER: 2.15kW
VOLTAGE: 230V
COOKING SURFACE: 330 x 355mm
DIMENSIONS: 355 x 466 x 327mm
WEIGHT: 14kg
|
ORDER CODES TSA9009
TSA9009 Toaster Anvil - 9 Slice - Panini Top & Bottom
|
|
Toaster Panini Deluxe - Non-stick |
|
Features
-
Ribbed top and flat bottom
-
For a more sophisticated sandwich presentation
-
For Italian and English sandwiches
-
Independent plate control enables operator to use as a flat top only,
while the top plate is switched off
|
ORDER CODES TSA5009
TSA5009 Toaster Anvil - 9 Slice - Panini Deluxe (Non-Stick)
SPECIFICATIONS - TSA 5009
POWER: 1.97kW
VOLTAGE: 230V
COOKING SURFACE: 330 x 355mm
DIMENSIONS: 355 x 466 x 327mm
WEIGHT: 14kg |
|
HEAVY DUTY TOASTER |
|
Features
-
Heavy duty cast iron toaster plates enables this unit to maintain its
heat under load during peak periods
-
High capacity output of 120 sandwiches per hour, and is energy
efficient
-
Unique element design for even toasting over entire cooking surface.
-
Fast cooking times
-
Large capacity front mounted drip tray
SPECIFICATIONS - TSH1001
POWER: 3.4kW
VOLTAGE: 230V
DIMENSIONS: 454 x 459 x 306mm
WEIGHT: 33kg |
ORDER CODES TSH1001
TSH1001 Toaster Heavy Duty Anvil- Flat Plate
|
|
Panini Grill Cast Iron |
|
Features
-
Thermostatically controlled between 50˚C and 300˚C
-
Heavy duty cast iron plates
-
Self balancing upper grill plate
|
ORDER CODES PGT0001
PGT0001 Panini Grill Anvil - Cast Iron
SPECIFICATIONS - PGT0001
POWER: 2.6kW
VOLTAGE: 230V
DIMENSIONS: 410 x 378 x 205mm
WEIGHT: 22kg
|
|

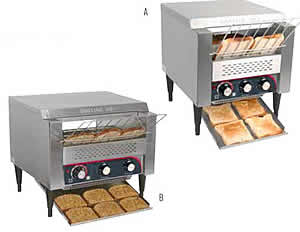

CONVEYOR TOASTERS |
|
Features
-
This compact unit is ideal for breakfast buffets in hotels and restaurants
-
Variable conveyor speed with toast and bun heat settings
-
Individual heat controls for top and bottom elements
-
Unit can be set for front or rear service
SPECIFICATIONS - CTK2001
POWER: 2.6kW
VOLTAGE: 230V - 50Hz
DIMENSIONS: 367 x 761 x 424mm
WEIGHT: 17.5kg
CAPACITY: Approx. 300 slices per hour
|
ORDER CODES CTK2001 - CTK2002
CTK2001 A Conveyor Toaster Anvil
CTK2002 B Conveyor Toaster Anvil - Wide Mouth
SPECIFICATIONS - CTK2002
POWER: 2.6kW
VOLTAGE: 230V - 50Hz
DIMENSIONS: 467 x 761 x 424mm
WEIGHT: 25kg
CAPACITY: Approx. 450 slices per hour |
|

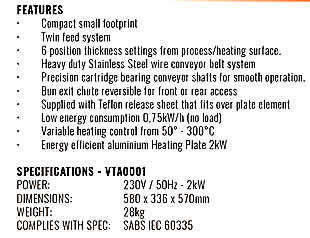

VERTICAL BUN TOASTER |
|
|
ORDER CODES VTA0001
VTA0001 Vertical Bun Toaster Anvil
|
|
Manual Lift Toasters 4 & 6 Slice |
|
Features
-
Fitted with a removable crumb tray
-
Timer with audible bell
-
Stainless Steel construction
-
Manual lift
SPECIFICATIONS - TSK0004
POWER: 2.24kW - with timer
VOLTAGE: 230V
DIMENSIONS: 370 x 210 x 225mm
WEIGHT: 4kg |
ORDER CODES TSK0004 - TSK0006
TSK0004 A Toaster Anvil - 4 Slice
TSK0006 B Toaster Anvil - 6 Slice
SPECIFICATIONS - TSK0006
POWER: 3.24KW - with timer
VOLTAGE: 230V
DIMENSIONS: 460 x 210 x 225mm
WEIGHT: 6kg |
|
Manual Lift Toaster |
|
Features
-
The world’s favourite toaster
-
Fitted with a removable crumb tray for easy cleaning
Powered by Proheat elements
-
Dualit’s patented ProHeat elements are the key feature of the
classic toasters
-
Their unique, armour-plated design keeps the filaments clean and
makes our ProHeat elements virtually unbreakable
-
The extra ‘winds per square cm’ ensure that the bread is toasted
more evenly
|
ORDER CODES TSD0006
TSD0006 Toaster Dualit - 6 Slice
SPECIFICATIONS - TSD0006
OUTPUT: APPROX 200 slices per hour
POWER: 3kW - with timer
VOLTAGE: 220V
DIMENSIONS: 460 x 220 x 220mm
WEIGHT: 5kg
CAPACITY: 2, 4 or 6 slices |
|
Sauce Warmer - Dip-a-Lait |
|
Features
-
For ice cream dips, chocolate and caramel sauces and even gravies
-
Includes 2 inserts (2 x 2Lt)
|
ORDER CODES DLA0002
DLA0002 Dip-A-Lait Anvil - 2 Division
SPECIFICATIONS - DLA0002
CAPACITY: 4Lt
POWER: 0.125kW
VOLTAGE: 230V
DIMENSIONS: 340 x 247 x 307mm
WEIGHT: 4kg< |
|
Waffle BakerS |
|
Features
-
Thermostat inside the unit is pre-set at 200˚C . The timer function can
be used to bake the waffles to the required finish
-
Breakfast, lunch or dinner, serve up profitable customer favourite waffles
in a wide variety of food service applications. Double plate units can be
independently operated, saving money through energy efficiency
SPECIFICATIONS - WBA0001
POWER: 0.8kW
VOLTAGE: 230V
PLATE DIAMETER: 185mm
DIMENSIONS: 280 x 465 x 260mm
WEIGHT: 8kg
|
ORDER CODES WBA0001 - WBA0002
WBA0001 A Waffle Baker Anvil - 1 Plate
WBA0002 B Waffle Baker Anvil - 2 Plate
SPECIFICATIONS - WBA0002
POWER: 1.6kW
VOLTAGE: 230V
PLATE DIAMETER: 185mm
DIMENSIONS: 510 x 465 x 260mm
WEIGHT: 17kg |
|
belgian Waffle BakerS |
|
Features
-
Anvil’s belgian style waffle bakers are ideally suited for use in
kitchens, coffee shops, outdoor markets and ice cream parlours
-
Units are fitted with a digital programmable control for heat and
time settings
-
Audible alarm on completion of the programmed time
SPECIFICATIONS - WBA1001
POWER: 1.0kW
VOLTAGE: 230V
PLATE DIAMETER: 190mm
DIMENSIONS: 255 x 440 x 290mm
WEIGHT: 11kg
|
ORDER CODES WBA1001 - WBA1002
WBA1001 A Waffle Baker Anvil - 1 Plate - Belgian
WBA1002 B Waffle Baker Anvil - 2 Plate - Belgian
SPECIFICATIONS - WBA1002
POWER: 2.0kW
VOLTAGE: 230V
PLATE DIAMETER: 190mm
DIMENSIONS: 520 x 440 x 290mm
WEIGHT: 22kg |
|
Pancake & Omelette HOT PLATE |
|
Features
-
Warming drawer fitted to keep the baked product warm
-
400mm diameter cast iron cooking surface
-
Wooden spatula included
-
Perfect for pancakes, crepes and flap jacks
SPECIFICATIONS - PMA1011
Voltage: 230V
Power: 3kW
Dimensions: 450 x 485 x 240mm
WEIGHT: 24kg
|
ORDER CODES PMA1011
PMA1011 Pancake & Omlette Machine Anvil
|
|
Chicken Rotisserie - 8 or 16 bird |
|
Features
-
Produces 8 or 16 delicious chickens at a time
-
Ideal for small supermarkets, restaurants, takeaways, etc
-
Hot air circulation using 1 or 2 fans to ensure even heat distribution
SPECIFICATIONS - CGA0008
CAPACITY: 8 x 1.2kg CHICKENS
POWER: 2,7kW
VOLTAGE: 230V, 50/60Hz
DIMENSIONS: 743 x 567 x 587mm
WEIGHT: 38kg
COOKING TIME: APPROX 1 HOUR 40min @ 180˚C
|
ORDER CODES CGA0008 - CGA0016
CGA0008 Chicken Griller Anvil - 8 Bird (Elec)
CGA0016 Chicken Griller Anvil - 16 Bird (Elec)
SPECIFICATIONS - CGA0016
CAPACITY: 16 - 20 x 1.2kg CHICKENS
POWER: 5kW
VOLTAGE: 230V - 2 PHASE - 50/60Hz
DIMENSIONS: 943 x 560 x 617mm
WEIGHT: 58kg
COOKING TIME: APPROX 1 HOUR 30min @ 180˚C |
|
Pizza Oven - TWIN SHELF |
|
Features
-
Robust Stainless Steel construction
-
3 x Heating elements for accurate heat distribution
-
Suitable for fresh or frozen pizza
-
Temp range 60ºC to 400ºC
-
15 min timer
|
ORDER CODES POA1001
POA1001 Pizza Oven Anvil - Twin Shelf - Small
SPECIFICATIONS - POA 1001
CAPACITY: 2 STANDARD SIZE
PIZZAS - 300mm
VOLTAGE: 230V
POWER: 2.85kW
DIMENSIONS: 588 x 645 x 468mm
CHAMBER DIMENSIONS: 470 x 487 x 239mm
WEIGHT: 40kg
|
|
Please Note
The products may differ slightly from the pictures shown in this buyers guide. Outputs and capacities given are generally the maximum possible, and these figures do vary according to circumstances. They are based on measurements supplied by the manufacturer, or recorded here. Every effort has been made to include as much needed information as possible, and to present it in an easy-to-read, unambiguous, and consistent manner Prices are subject to change, or may qualify for a discount and are an indication only . Please send us a quote application to see the best prices on offer. |
|
|
